1.4GHz UAV FPV Video Transmitter – Long Range 10KM Wireless Drone Video Link System
The 1.4GHz UAV FPV Video Transmitter is a high-performance long-range wireless video transmission system designed for professional drone applications. It provides stable, low-latency HD video streaming up to 10KM range, ensuring reliable communication for FPV pilots, UAV operators, and industrial drone missions.
Built with advanced RF design and anti-interference technology, this system delivers smooth real-time video even in complex electromagnetic environments, making it ideal for both commercial and professional UAV operations.
Optimized for Long Range FPV Drone Missions
Unlike standard analog FPV systems, this 1.4GHz UAV video transmission link is engineered for extended range and improved penetration capability. It maintains stable signal quality over urban, rural, and semi-obstructed environments, significantly improving flight safety and control accuracy.
Key Features
- 1.4GHz frequency band optimized for long-range UAV communication
- Stable transmission distance up to 10KM (line of sight)
- Low latency real-time HD video output
- Strong anti-interference and anti-noise performance
- Compact, lightweight, and easy UAV integration
- Supports FPV drones, fixed-wing UAVs, and multirotor platforms
- Industrial-grade RF stability for professional use
Technical Specifications
| Product Name | 1.4GHz UAV FPV Video Transmitter - Long Range 10KM Wireless Drone Video Link System |
|---|
| Modulation | TDD OFDM |
|---|
| Frequency | 566~678MHz, 1420~1530MHz |
|---|
| FHSS | Support |
|---|
| Bandwidths | 3MHz, 5MHz, 10MHz, 20MHz, 40MHz |
|---|
| Encryption | AES128 |
|---|
| Data Rate | Maximum 100Mbps |
|---|
| RF Transmission Power | 300mW*2 |
|---|
| Constellation | QPSK, 16QAM, 64QAM self adaption |
|---|
| Sensitivity | -102dBm(1Mbps@20MHz) |
|---|
| Latency | 200ms |
|---|
| Transmission Range | 10km (UAV to Ground) |
|---|
| Power Input | 12~18V (for both air unit and Ground unit) |
|---|
| Power Consumption | <7W |
|---|
| Dimensions | 83.7*61.4*20.2mm (the ground unit is the same as the air unit) |
|---|
| Weight | 106g (the ground unit is the same as the air unit) |
|---|

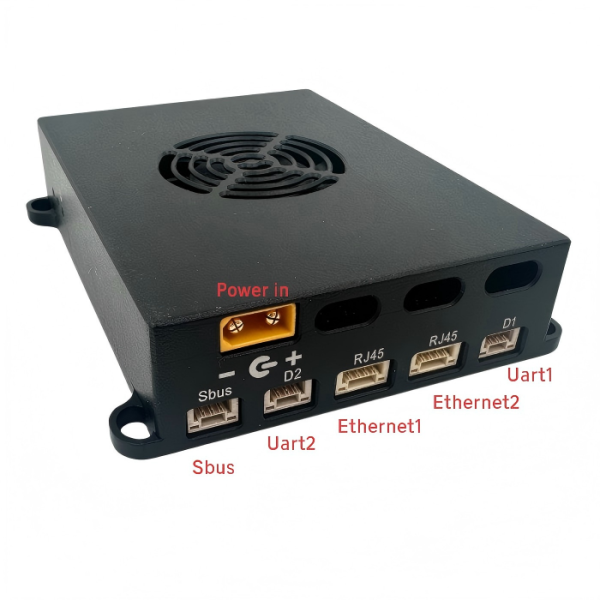

| Air Unit Connectivity | Ethernet*2, UART*2, SBUS, Power in, SMA*2 |
|---|
| Ground Unit Connectivity | Ethernet*2, UART*2, SBUS, Power in, SMA*2 |
|---|
Product Design
Reliable Performance in Real-World Conditions
This long range FPV video transmitter system is designed for challenging environments such as open fields, mountainous regions, coastal surveillance zones, and industrial inspection sites. It ensures consistent video feed stability, even under high-speed drone movement or partial signal obstruction.
Wide Application Scenarios
- FPV drone racing and aerial photography
- UAV inspection for power lines and pipelines
- Agricultural monitoring and mapping
- Search and rescue operations
- Security surveillance and border patrol
- Industrial infrastructure inspection
